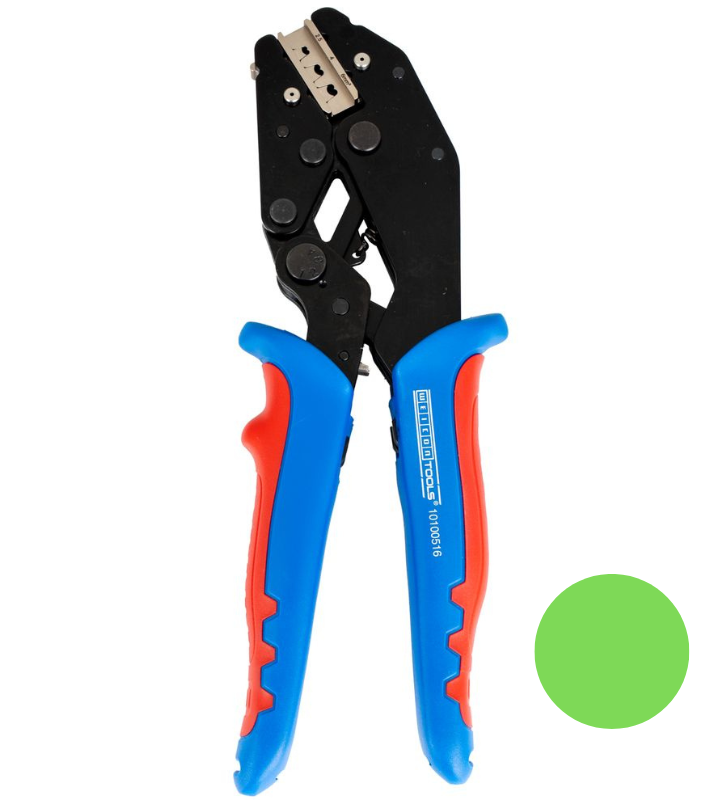

WEICON ERGO-CRIMP Modular Crimping Tool Set
The WEICON ERGO-CRIMP is a professional modular crimping system designed for precise, process-safe crimping across a variety of electrical connectors. Featuring a ratchet mechanism, adjustable crimping force and interchangeable crimping modules, it delivers consistent, repeatable results while providing the flexibility to tackle multiple applications with a single tool.
Features
- Professional modular crimping tool supplied with three interchangeable crimping modules.
- Includes modules for:

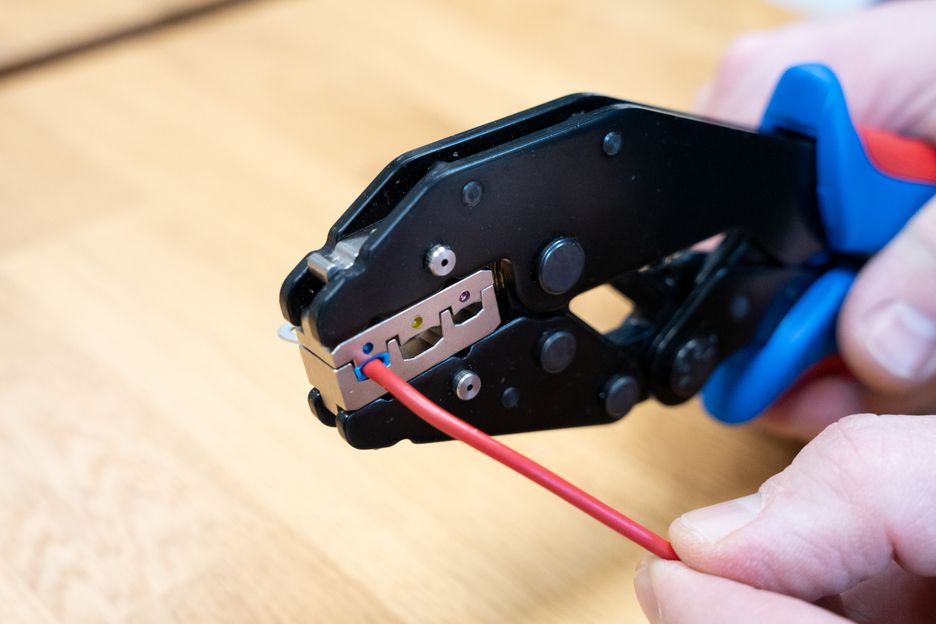

- MC4 connectors (2.5, 4.0 & 6.0 mm² / AWG 14–10)

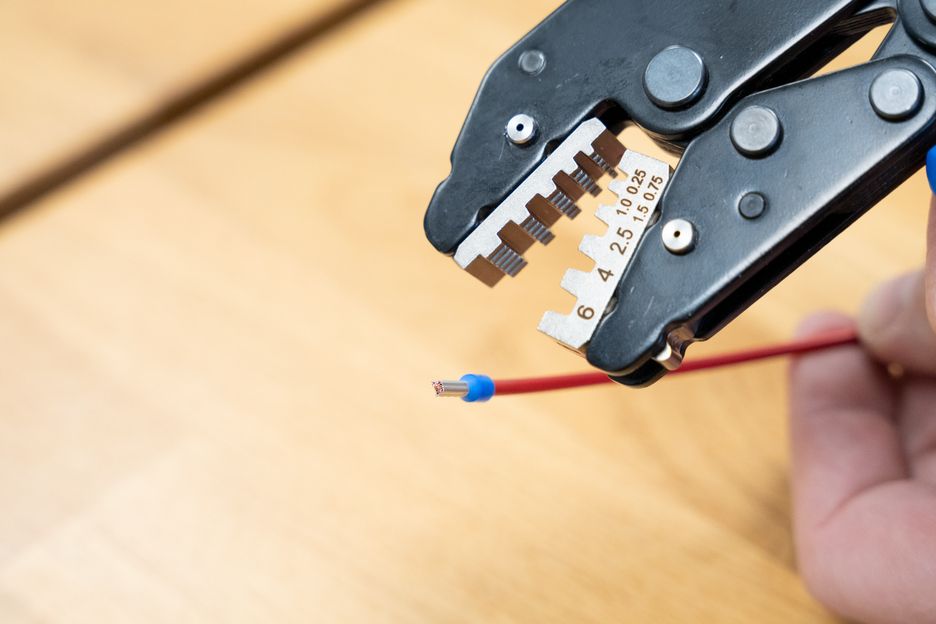

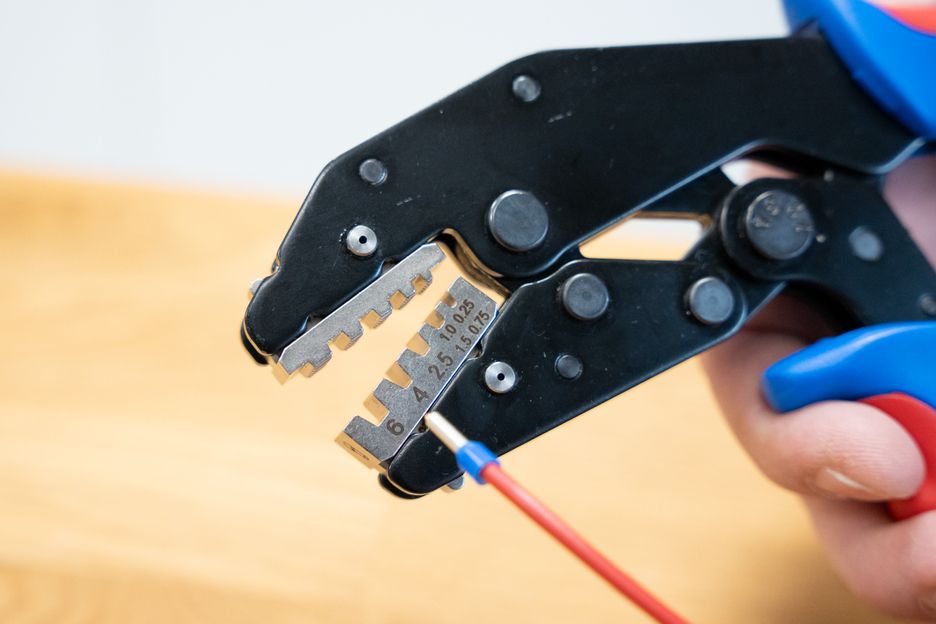

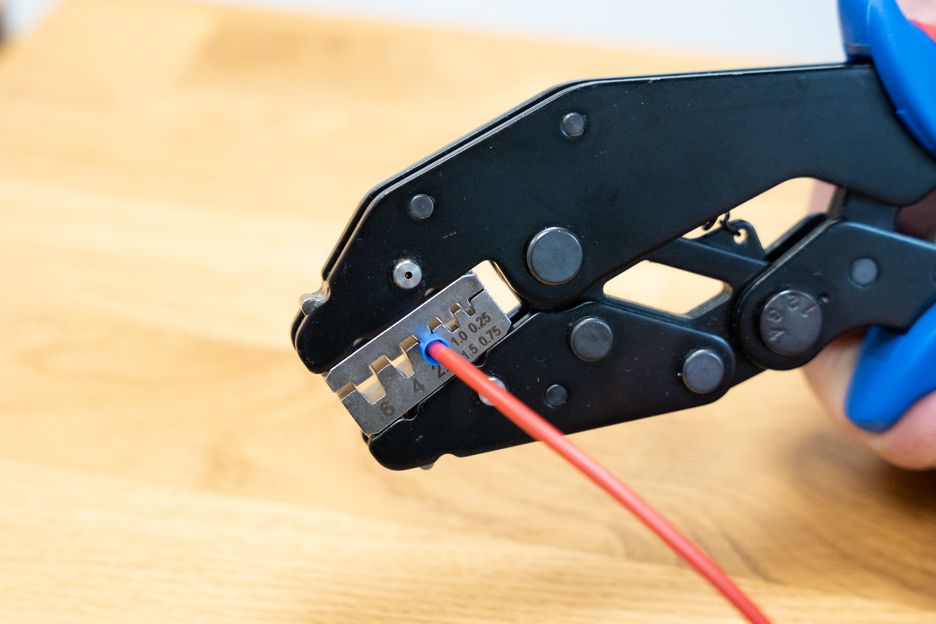

- Insulated wire end ferrules (0.25–6.0 mm² / AWG 24–10)

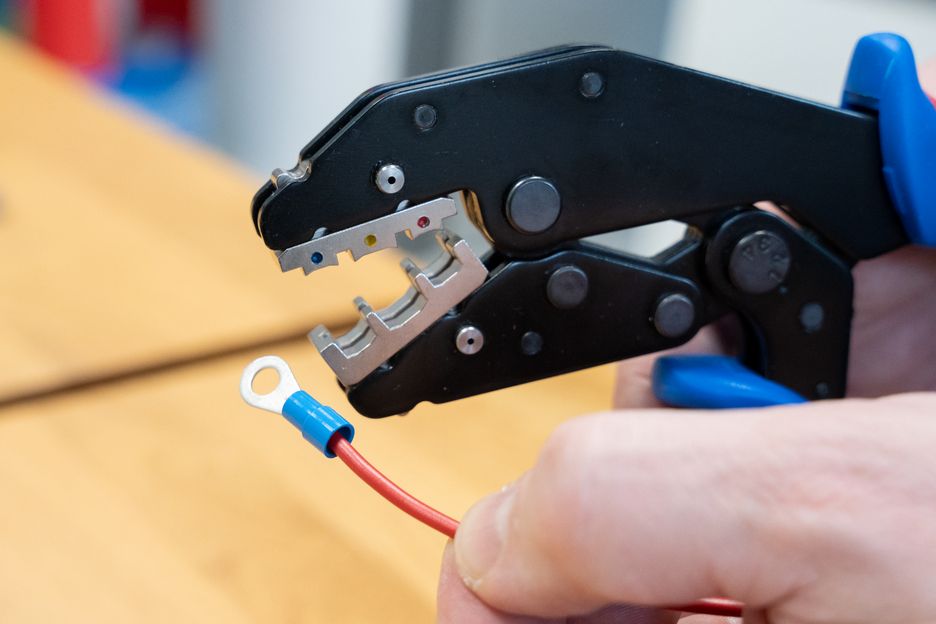

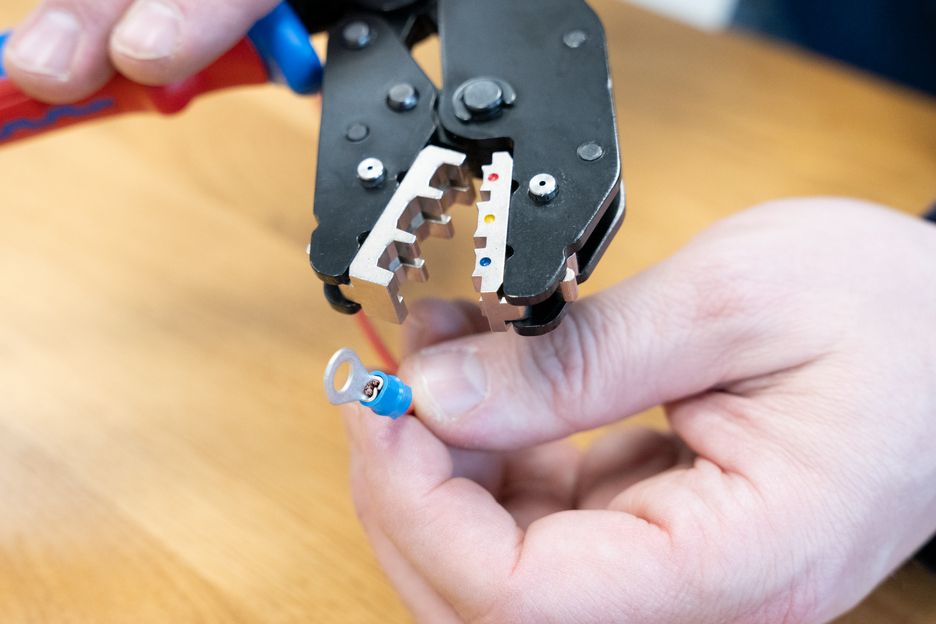

- Insulated cable lugs (0.5–6.0 mm² / AWG 22–10)
- Ratchet mechanism with blocking device ensures the tool only opens once the crimp is complete.
- Delivers consistent, repeatable crimping quality for reliable electrical connections.
- Integrated emergency release allows the tool to be safely opened whenever required.
- Precision eccentric adjustment enables accurate crimping force calibration.

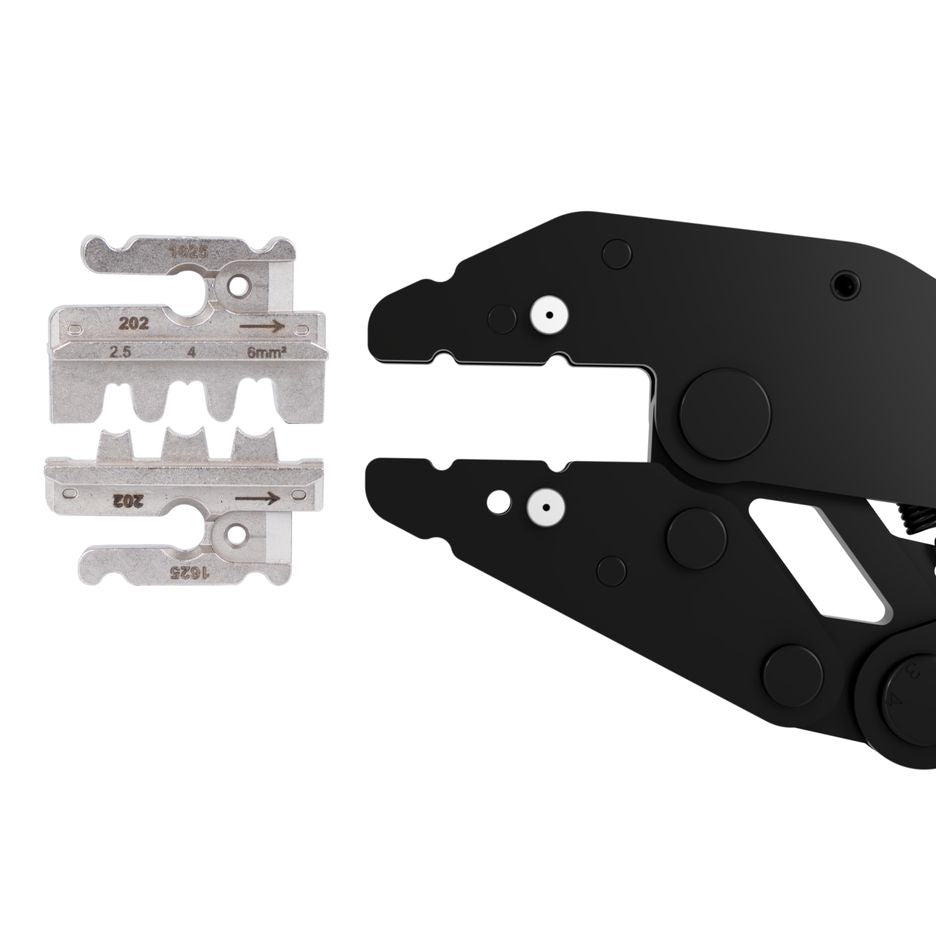

- Multi Change System allows crimping modules to be changed quickly without additional tools.
- Additional crimping modules are available separately to expand the tool's versatility.
- High-quality steel crimping modules provide durability and long service life.
- Ergonomic two-component "ice-crack" handles offer a secure, comfortable grip with excellent force transmission.
- Integrated handle eyelets allow attachment of a safety lanyard.
- Supplied with a durable plastic storage case to keep modules organised and protected from dust.
Specifications
- Crimping System: Ratchet mechanism with blocking device
- Module System: Tool-free Multi Change System
-
Included Modules:
- MC4 Connectors: 2.5, 4.0 & 6.0 mm² (AWG 14–10)
- Insulated Wire End Ferrules: 0.25–6.0 mm² (AWG 24–10)
- Insulated Cable Lugs: 0.5–6.0 mm² (AWG 22–10)
- Crimp Force Adjustment: Precision eccentric adjustment
- Handle: Ergonomic two-component grip
- Safety Features: Emergency release and lanyard attachment eyelets
