WEICON MULTI-CRIMP Modular Crimping Tool Set
The WEICON MULTI-CRIMP is a versatile, professional crimping system designed for reliable, process-safe crimping across a wide range of electrical connectors. Supplied with three interchangeable crimping modules, it provides the flexibility to handle MC4 connectors, insulated ferrules and insulated cable lugs with one high-quality tool.
Features
- Modular crimping tool supplied with three interchangeable crimping modules.
- Includes modules for:

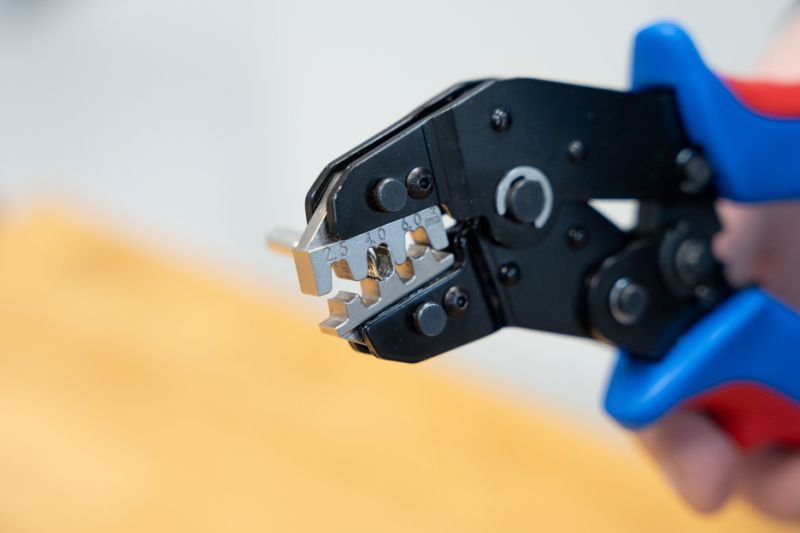

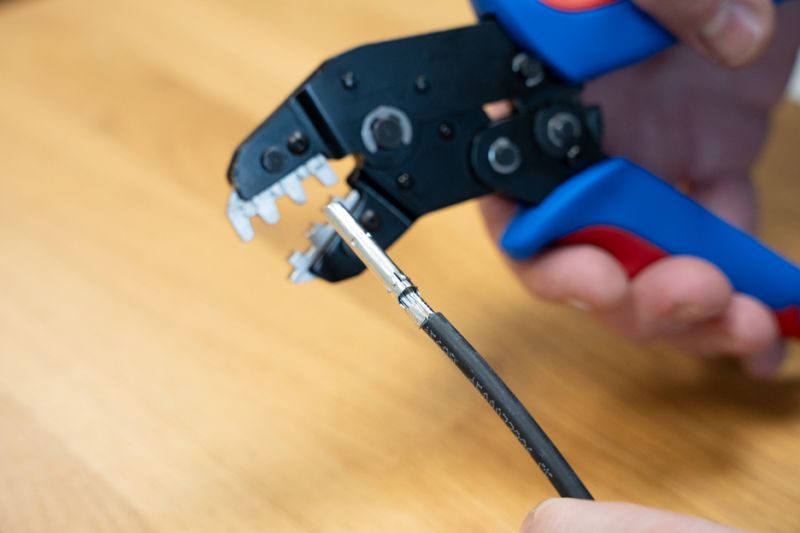

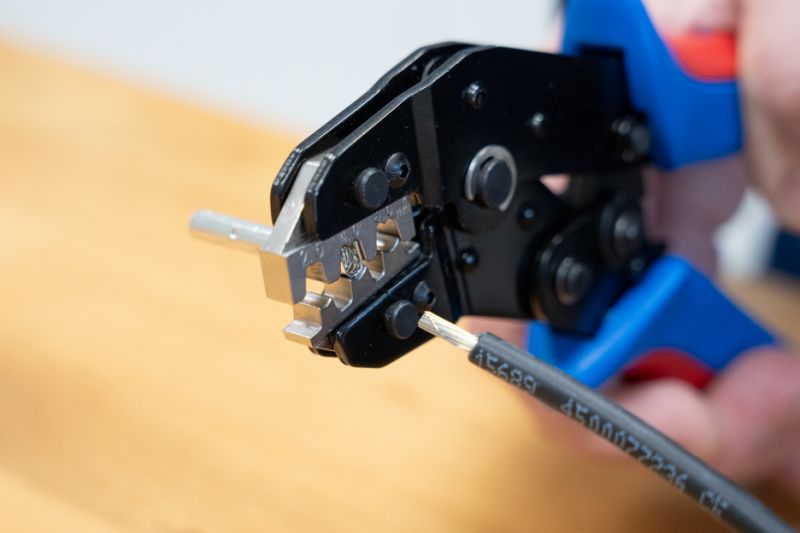

- MC4 connectors (2.5, 4.0 & 6.0 mm² / AWG 14–10)

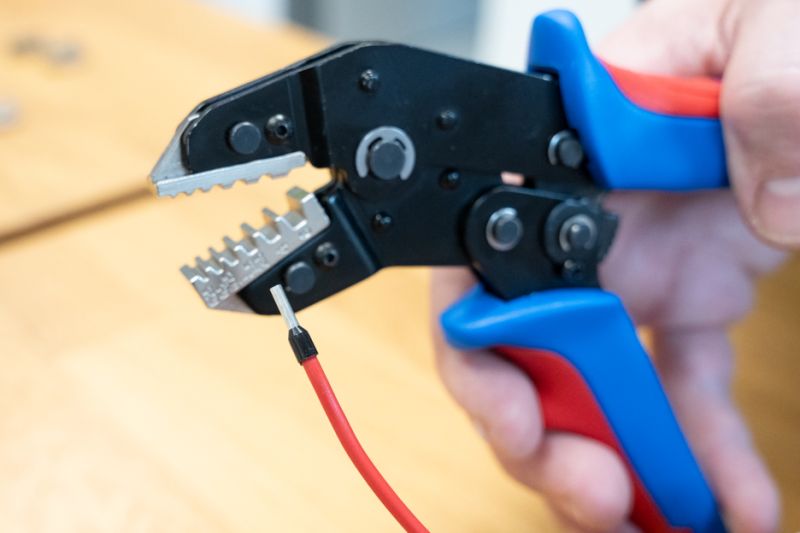

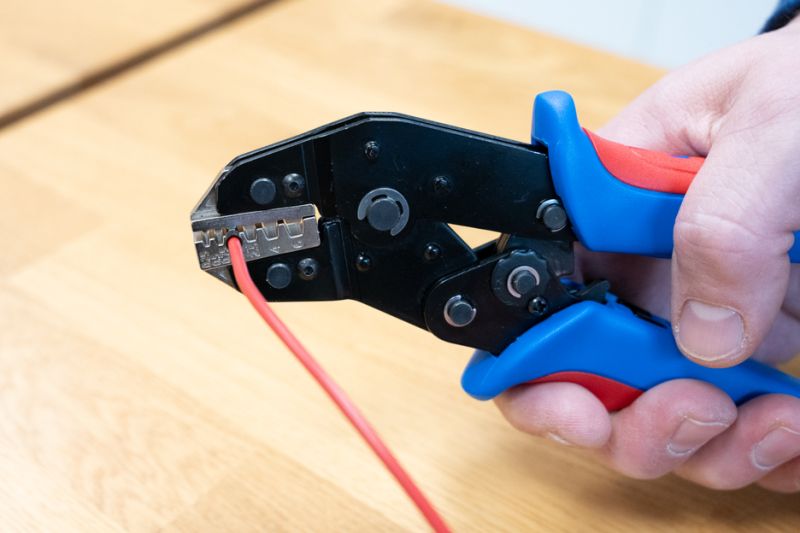

- Insulated wire end ferrules (0.25–6.0 mm² / AWG 24–10)

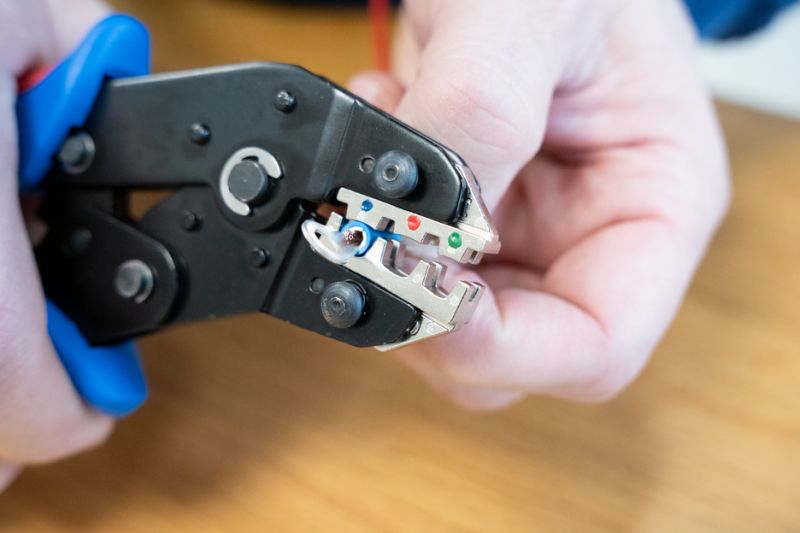

- Insulated cable lugs (0.25–2.5 mm² / AWG 24–14)
- Ratchet mechanism with blocking device ensures the tool only opens once the crimp is complete.
- Delivers consistent, repeatable crimping quality for reliable electrical connections.
- Integrated emergency release allows the tool to be safely opened in the event of incorrect operation.
- Precision eccentric adjustment enables accurate crimping force calibration.

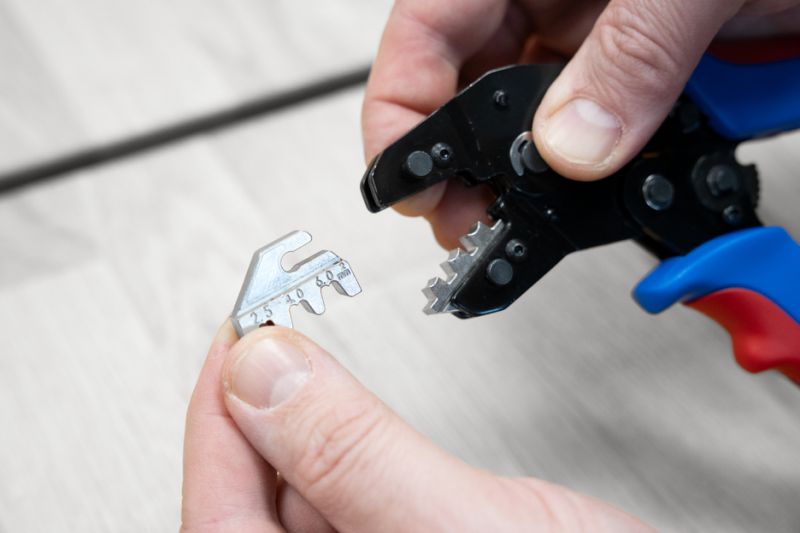

- Multi Change System allows modules to be swapped quickly without additional tools.
- High-quality steel crimping modules provide durability and long service life.

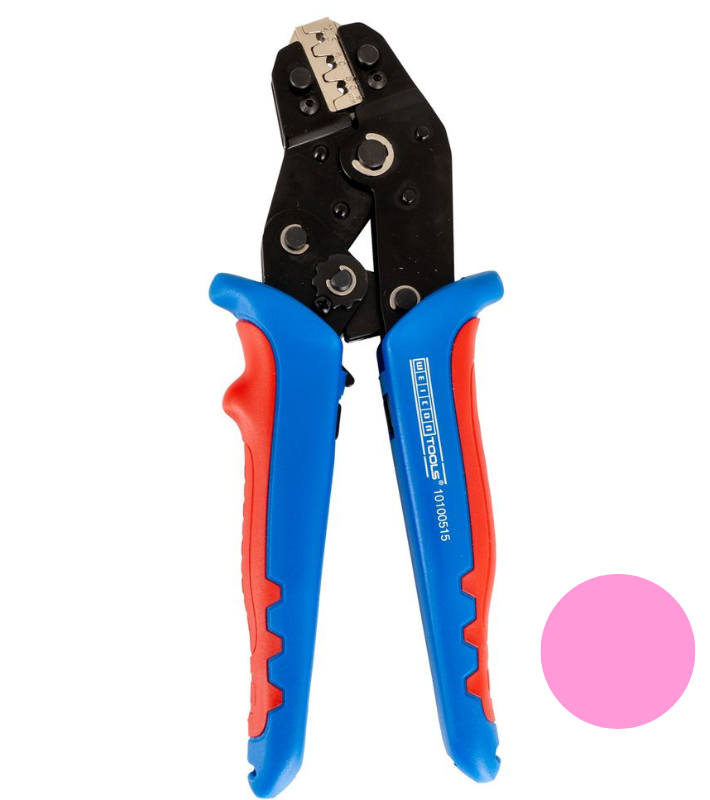

- Ergonomic two-component "ice-crack" handles offer a secure grip and excellent force transmission.
- Integrated handle eyelets allow attachment of a safety lanyard.

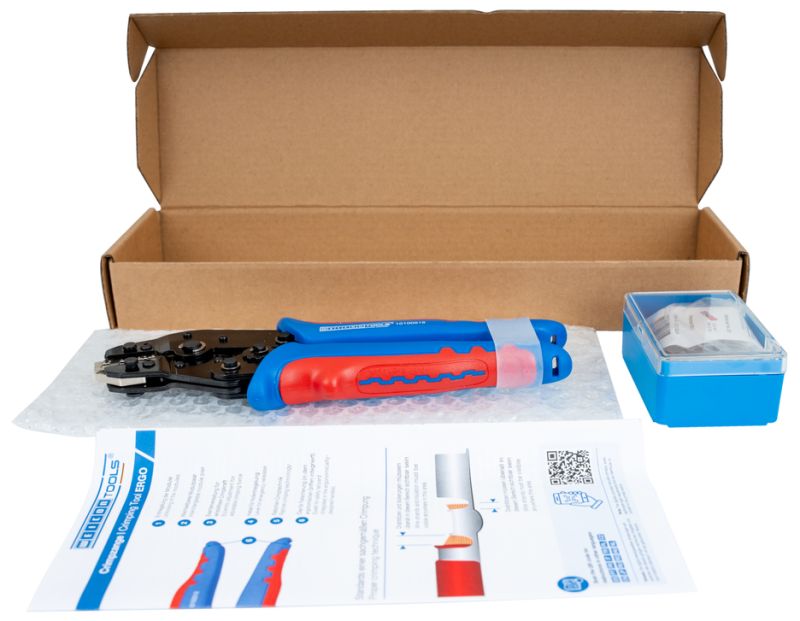

- Supplied with a durable plastic storage case to keep modules organised and protected from dust.
Specifications
- Crimping System: Ratchet mechanism with blocking device
- Module System: Tool-free Multi Change System
-
Included Modules:
- MC4 Connectors: 2.5, 4.0 & 6.0 mm² (AWG 14–10)
- Insulated Wire End Ferrules: 0.25–6.0 mm² (AWG 24–10)
- Insulated Cable Lugs: 0.25–2.5 mm² (AWG 24–14)
- Crimp Force Adjustment: Precision eccentric adjustment
- Handle: Ergonomic two-component grip
- Safety Features: Emergency release and lanyard attachment eyelets
