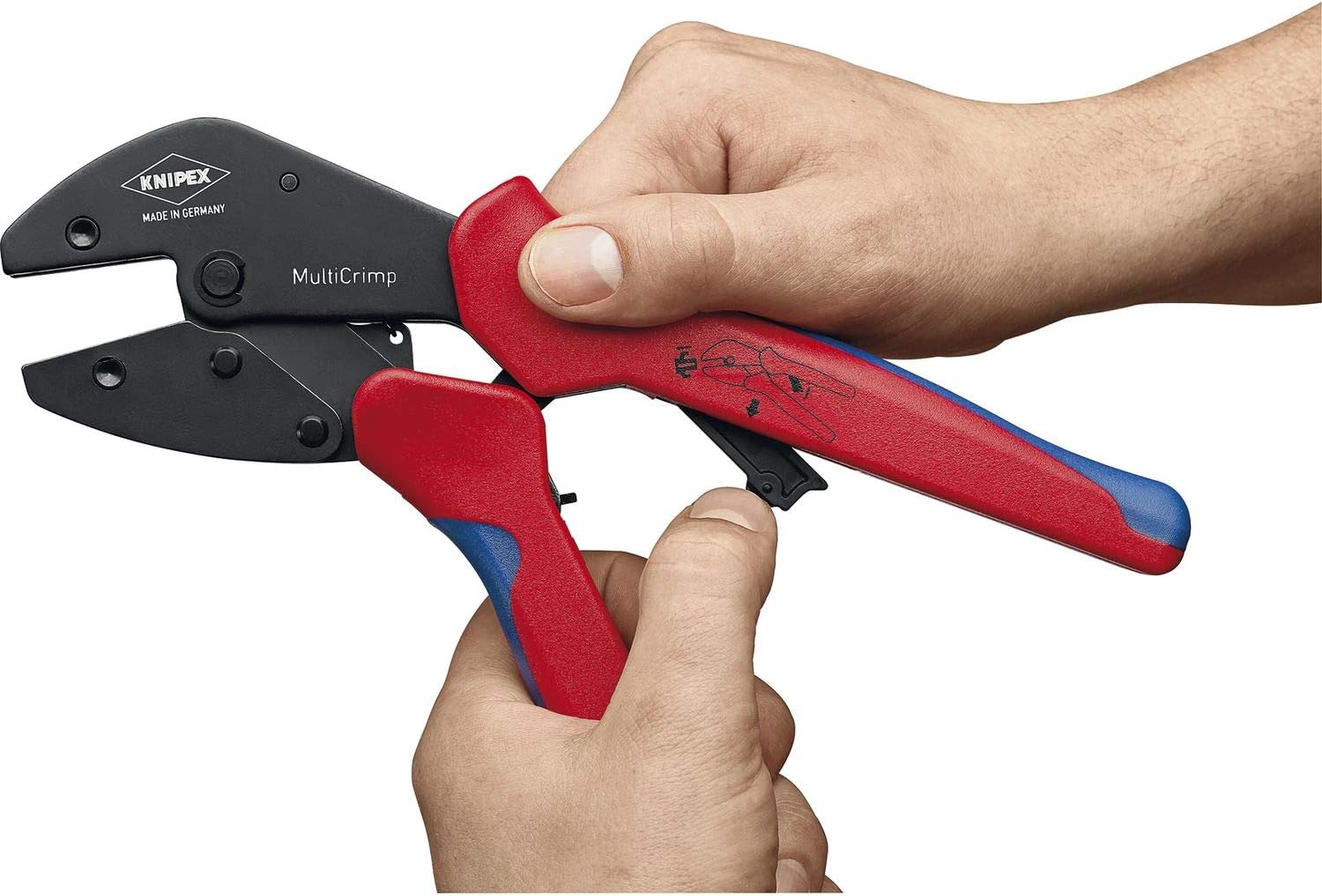

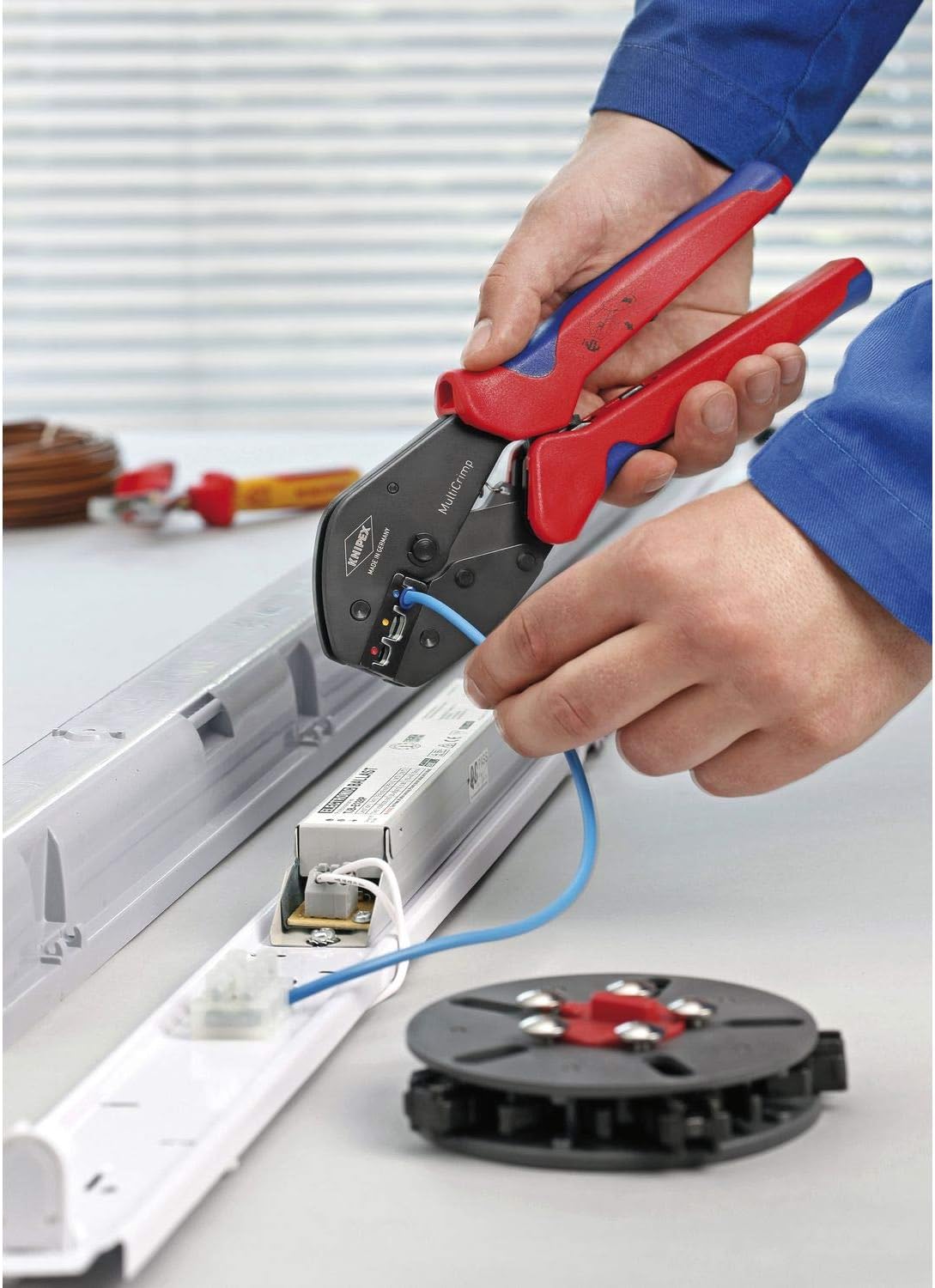

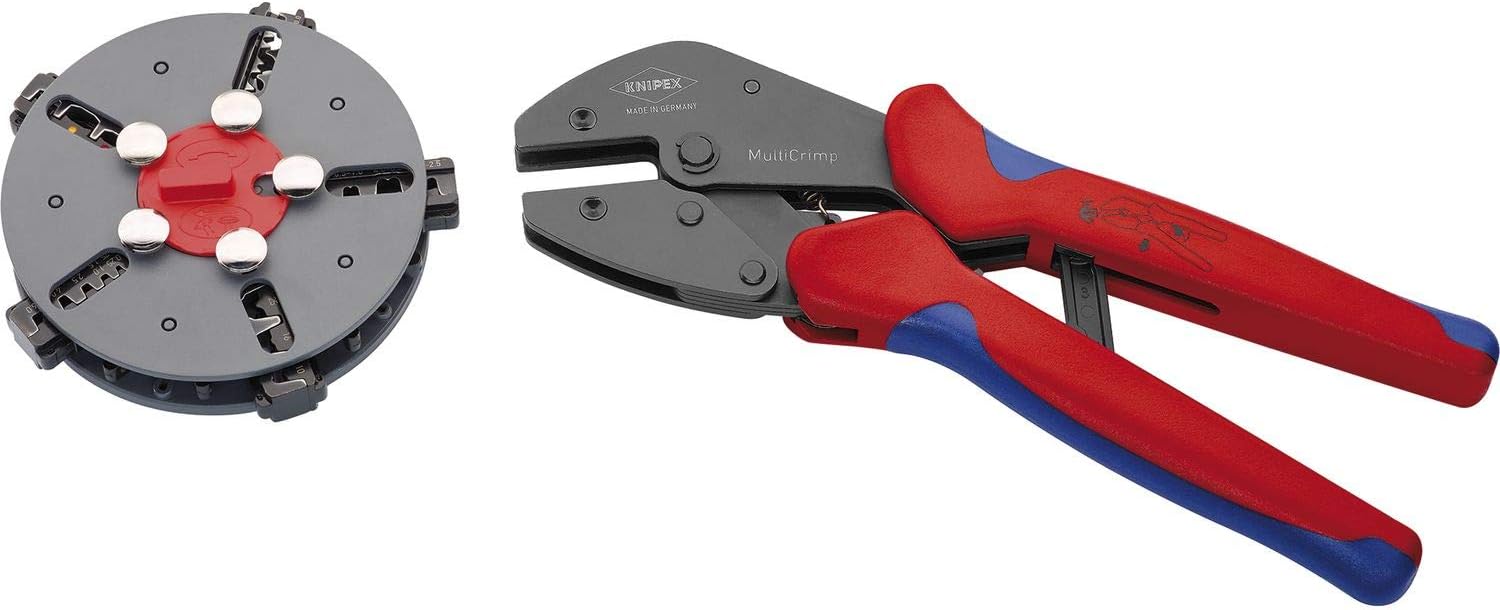

The KNIPEX MultiCrimp® 97 33 02 is a professional, all-in-one crimping solution featuring a convenient round magazine with five interchangeable crimping dies. Designed to cover the most common electrical crimping applications, it allows dies to be changed quickly without additional tools while keeping them safely organised and protected within the integrated magazine.
Precision-manufactured dies combined with a forced locking mechanism ensure consistently reliable, high-quality crimps. The pliers are manufactured from high-quality chrome vanadium electric steel and feature comfortable multi-component handles for excellent control during repetitive crimping work.

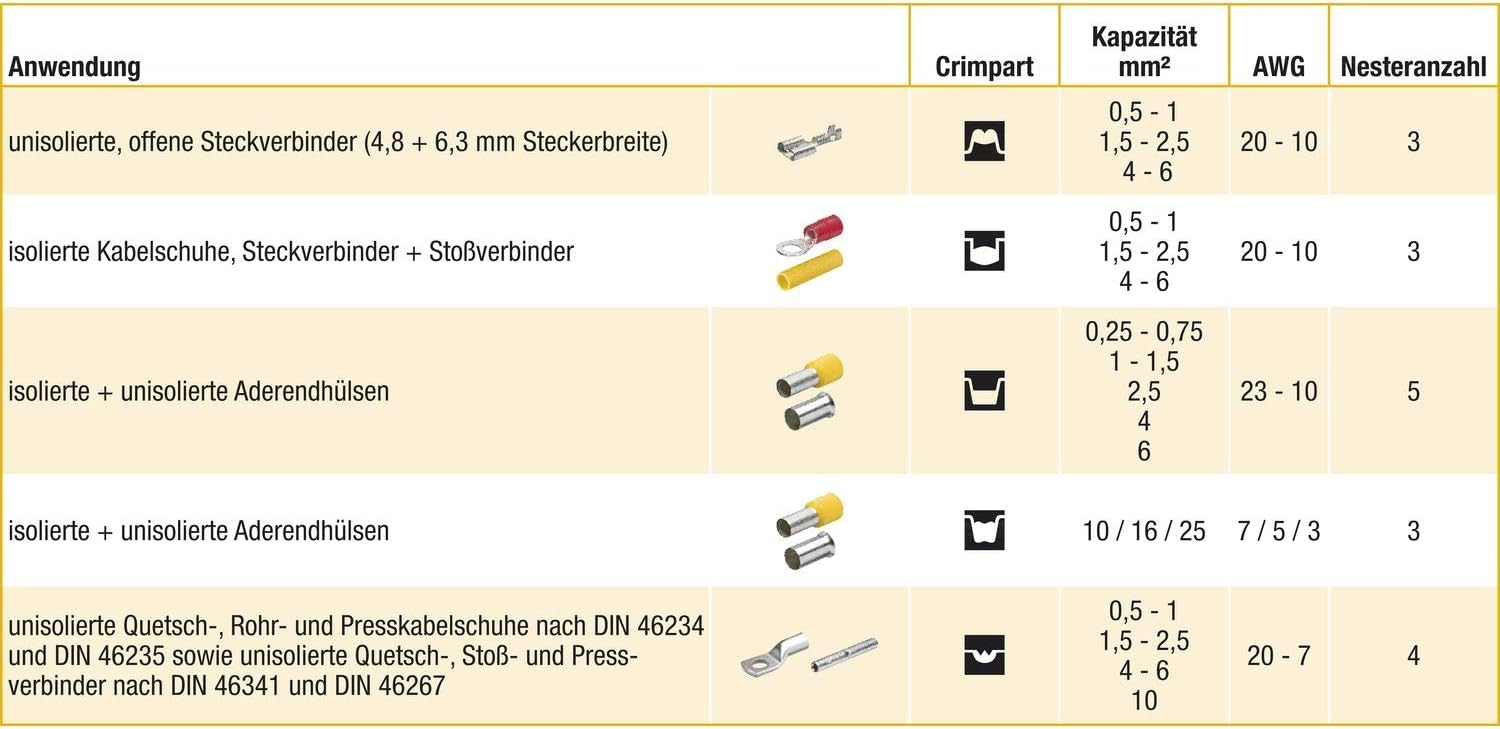

Crimping Applications
The included interchangeable dies are suitable for:
- Non-insulated open plug-type connectors: 0.5–6.0 mm², including 4.8 mm and 6.3 mm plug widths
- Insulated terminals, plug connectors and butt connectors: 0.5–6.0 mm²
- Insulated and non-insulated ferrules: 0.25–6.0 mm²
- Large insulated and non-insulated ferrules: 10, 16 and 25 mm²
- Non-insulated crimp terminals
- Tube and compression cable lugs: DIN 46234 and DIN 46235
- Non-insulated crimp, butt and press connectors: DIN 46341 and DIN 46267
Overall crimping capacity: 0.25–25 mm² / 24–4 AWG
Crimp Profiles
- F crimp
- Oval crimp
- Trapezoid crimp
- Trapezoid indent crimp
- W crimp
Features
- One tool for a wide range of common crimping applications
- Includes five interchangeable crimping dies
- Tool-free die changes

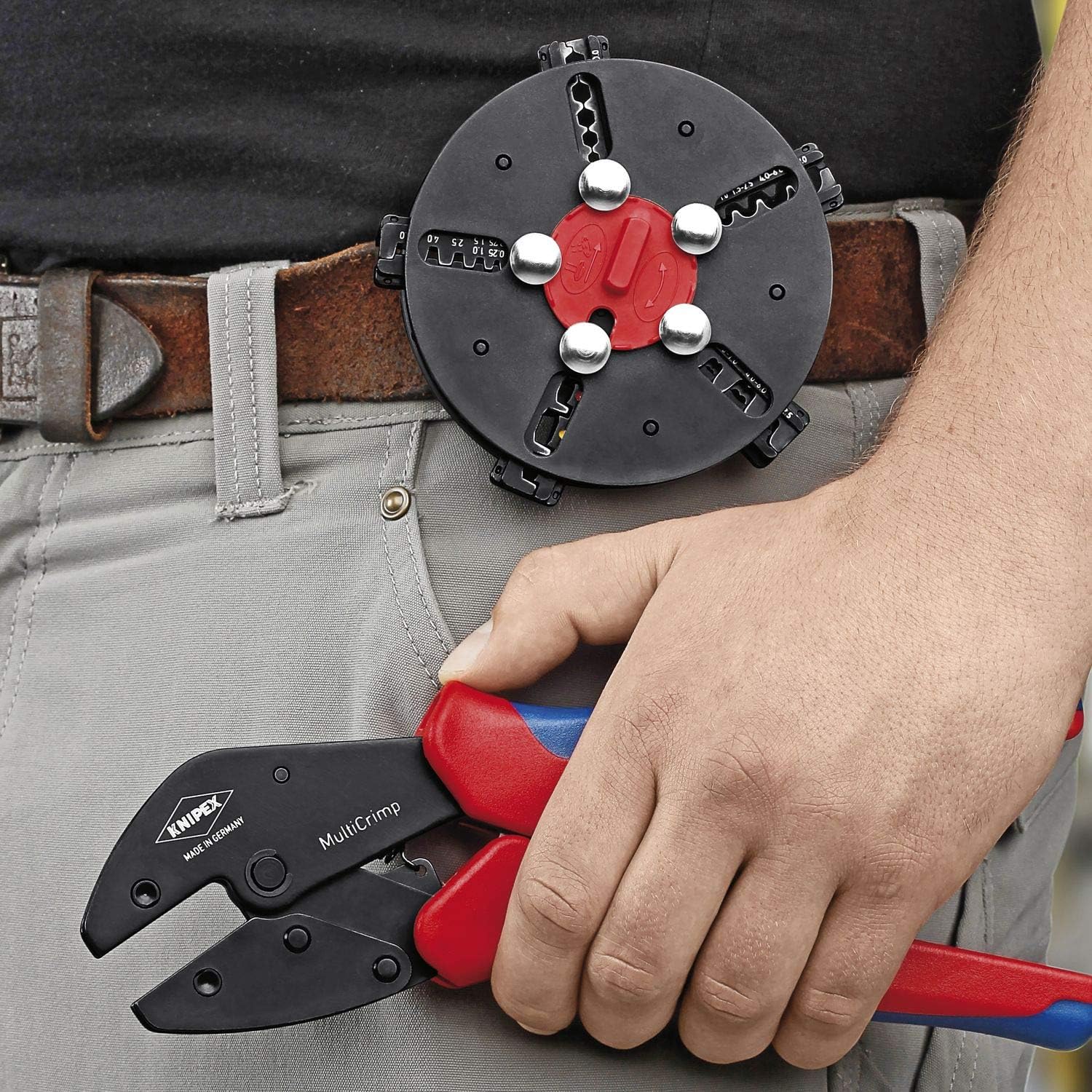

- Integrated round magazine keeps dies organised and protected
- Precision dies provide consistently high-quality crimps
- Forced locking mechanism ensures the crimping cycle is completed correctly

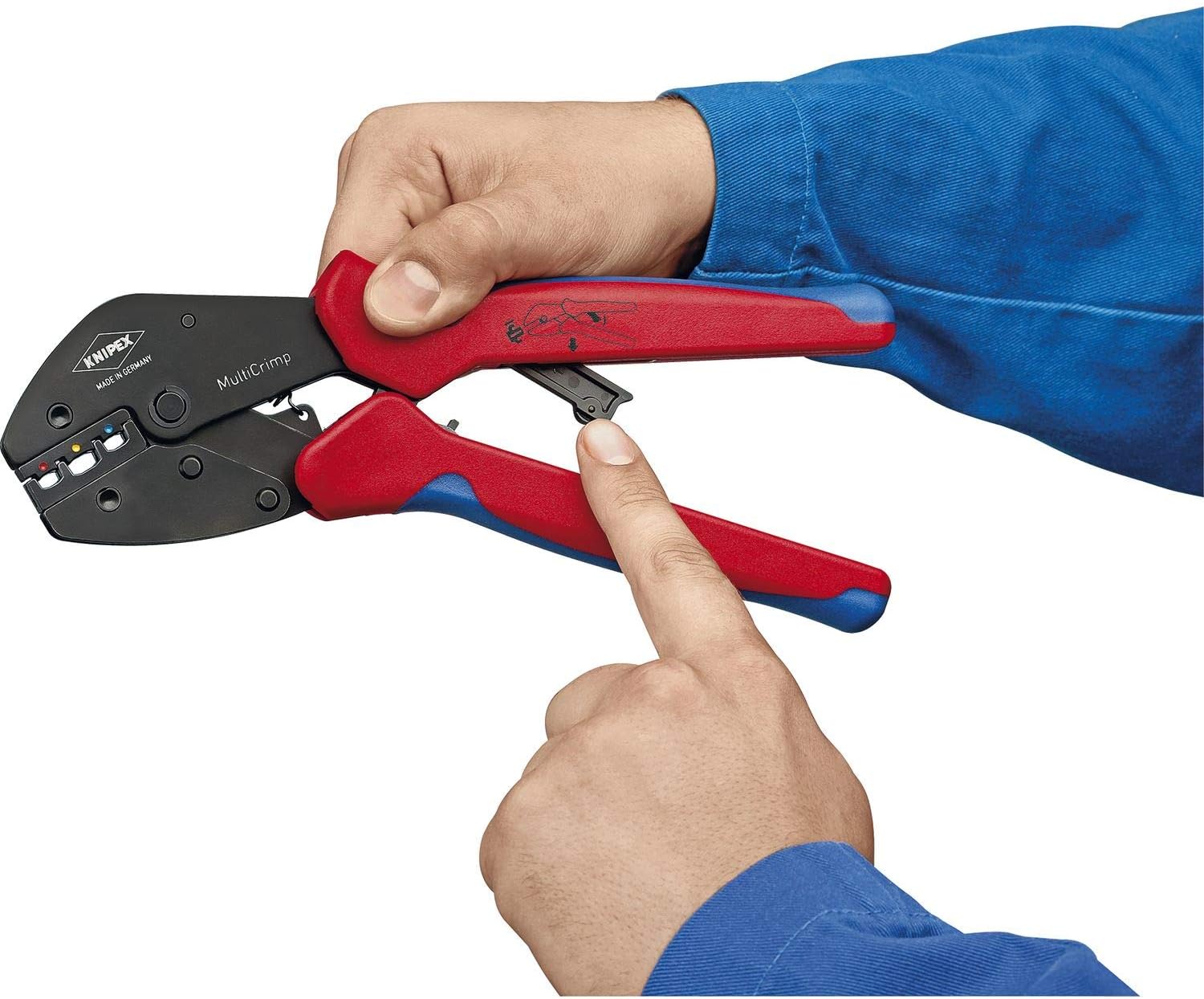

- Unlockable locking mechanism
- Professional-quality, high-leverage crimping design
- Chrome vanadium electric steel construction
- Oil-hardened and black-oxide/burnished finish
- Fiberglass-reinforced plastic die magazine
- Comfortable multi-component handles
- Made in Germany
Specifications
Part Number: 97 33 02
Length: 9 1/4"
Width: 3 1/2"
Height: 1 1/4"
Weight: 1.24 lbs / approx. 562 g
Crimping Capacity: 0.25–25 mm² / 24–4 AWG
Material: Chrome vanadium electric steel, oil-hardened
Magazine Material: Fiberglass-reinforced plastic
Handle: Multi-component
1000V Insulated: No
Spring Loaded: No
Country of Origin: Germany
UPC: 843221015381
